Batteries and Chargers

   Motorcycle Battery (Dong Jing 12V 5AH)
   SKU: PART03009
Email This Page Email This Page Print This Page Print This Page

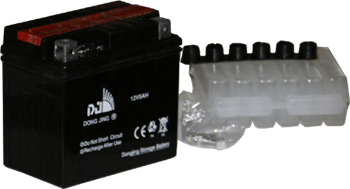

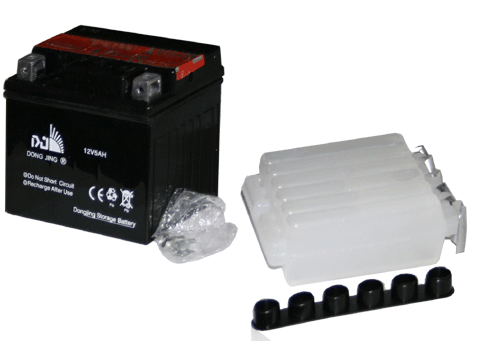

Motorcycle Battery (Dong Jing 12V 5AH)
PART NUMBER:    PART03009
AVAILABILITY:     IN STOCK
SALE PRICE:    $40.00
SHIPPING & HANDLING:    $12.00
QUANTITY:     For large quantity purchase discount, please contact us for price quote.
 For multiple parts orders, shipping and handliing will be adjusted to a reasonably lower amount!


Features
Photo Gallery
Detailed Specification
Related Items
                Features
  • Motorcycle Battery (Dong Jing 12V 5AH)
  • Dimension: 4.25 x 4.25 x 2.5"
Back to Top
                Photo Gallery
Back to Top
                Detailed Specification

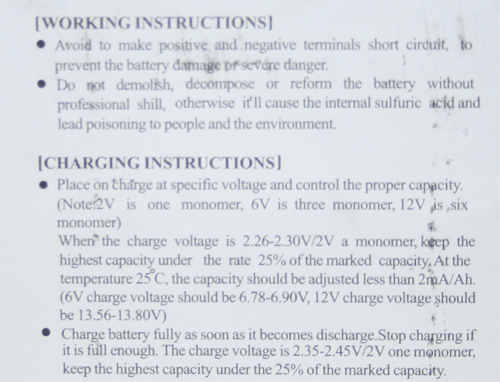

  • Working Instructions:
    Avoid to make positive and negative terminals short circuit to prevent the battery damage or severe danger.
    Do not demolish, decompose or reform the battery without professional shill, otherwise it’ll cause the internal sulfuric acid and lead poisoning to the people and the environment
  • Charging Instructions:
    Place on charge at specific voltage and the control the proper capacity. (Note 2V is one monomer, 6V is three monomer, 12V is six monomer)
    when charge voltage is 2.26-2.30V/2V a monomer keep the highest capacity under the rate 25% of the marked capacity. At the temperature 25°C, the capacity should be adjusted less than 2mA/Ah.(6V charge voltage should be 6.78-6.90V, 12V charge voltage should be 13.56-13.80V)
    Charge battery fully as soon as it becomes discharge stop charging if it is full enough. The charge voltage is 2.35-2.45V/2V one monomer keep the highest capacity under the 25% of the marked capacity.

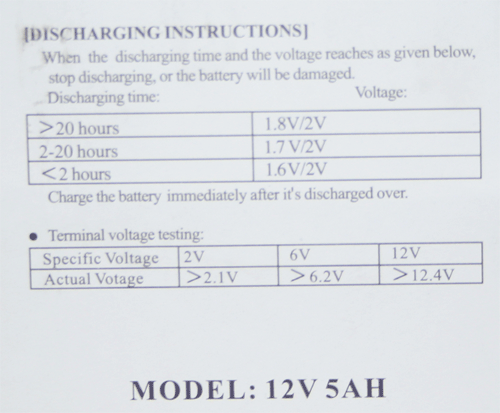

  • Discharging Instructions:
    When the discharging time and the voltage reaches as given below, stop discharging, or the battery will be damaged.
    > 20 hours: 1.8V/2V
    2-20 hours: 1.7V/2V
    <2 hours: 1.6V/2V
  • Terminal voltage testing:
    Specific voltage 2V, Actual voltage > 2.1V
    Specific voltage 6V, Actual voltage > 6.2V
    Specific voltage 12V, Actual voltage > 12.4V
